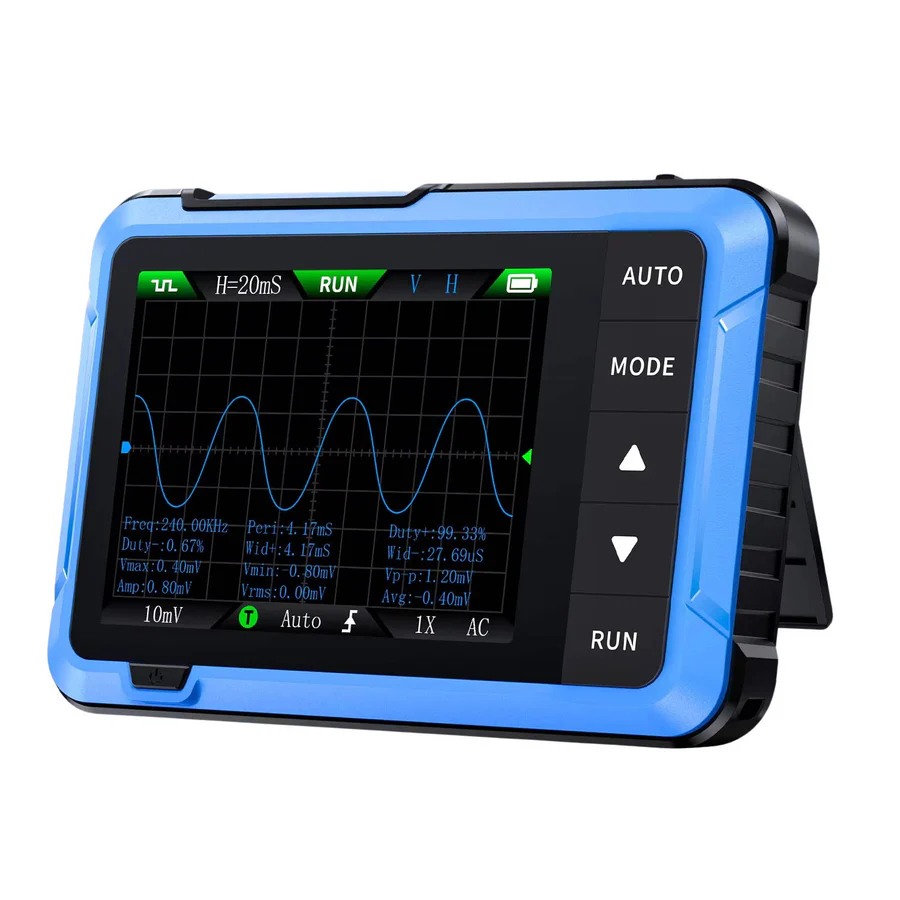

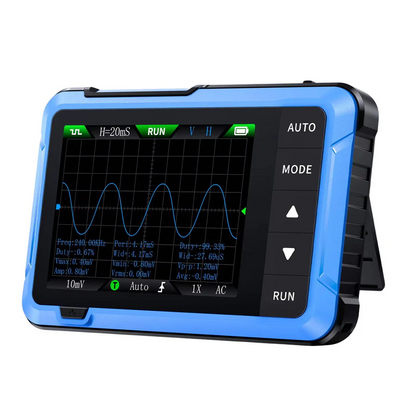

Compact Handheld Oscilloscope for Electronics

Unlock Efficient Circuit Testing with Our Compact Digital Oscilloscope

Get ready to take your circuit testing to the next level with our lightweight and portable digital oscilloscope. Featuring instant AUTO configuration and a vibrant 2.8-inch LCD display, you can quickly capture signals without any wait. This means you can diagnose issues faster and make repairs more efficiently, saving you time and money.

Choose the Right Model for Your Needs

We offer two models to suit your requirements: the Standard and Pro editions. The Standard model is perfect for routine diagnostics, while the Pro edition offers elevated sampling rates and bandwidth for more complex testing. With our oscilloscope, you can tackle a wide range of tasks, from simple circuit tests to advanced signal analysis.

Reliable and Versatile

Both models come equipped with an integrated signal generator, can safely measure voltage up to ±400 V, and are powered by a rechargeable battery that lasts for up to 4 hours during continuous use. This means you can work on-the-go without worrying about running out of power. Plus, with its compact design, you can take it anywhere and use it in any environment.

Key Features and Benefits

• Accurate Voltage Measurement: Capable of ±400 V range with built-in circuit safety features, giving you peace of mind when working with high-voltage circuits.
• Real-Time Sampling Rate: 5 MS/s (Standard) or 48 MS/s (Pro) for precise signal acquisition, allowing you to capture even the most complex signals.
• Bandwidth Spectrum: 1 MHz (Standard) or 10 MHz (Pro) designed for high-frequency evaluations, making it perfect for a wide range of applications.

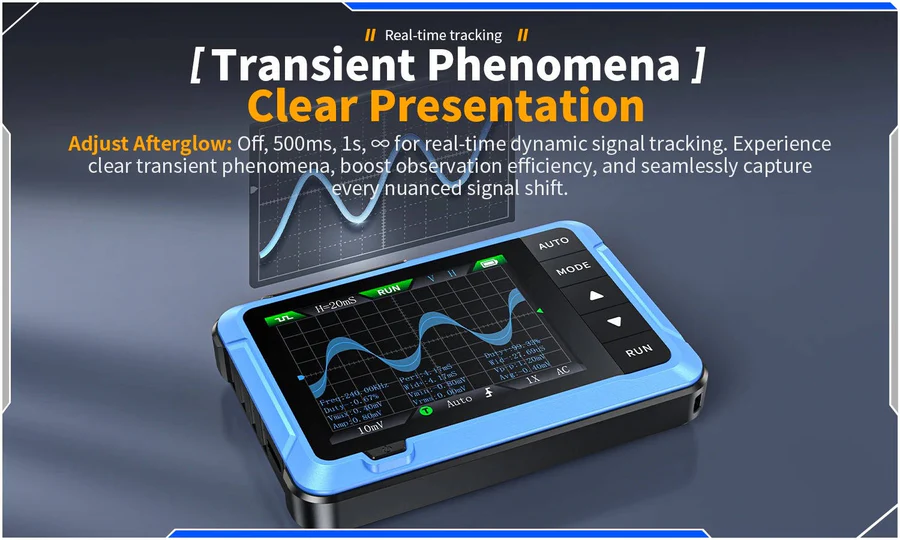

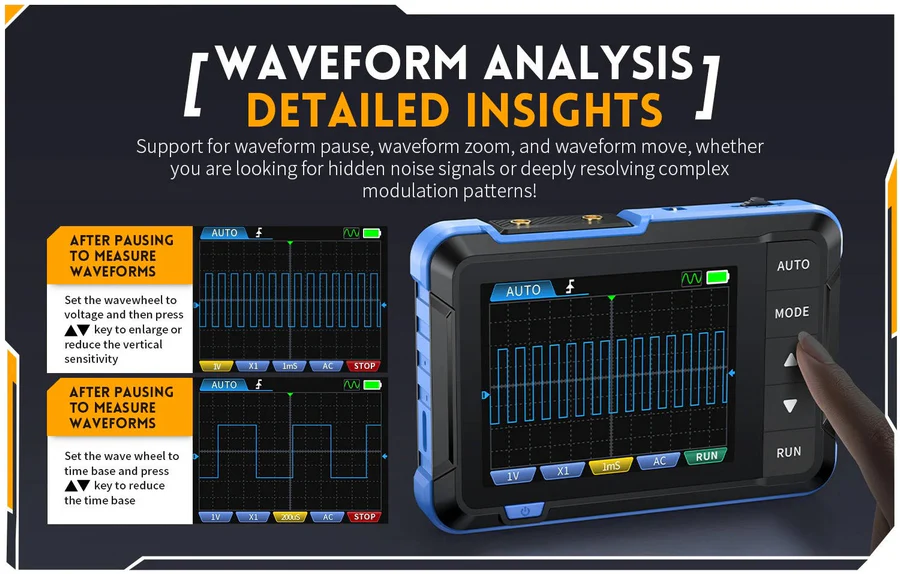

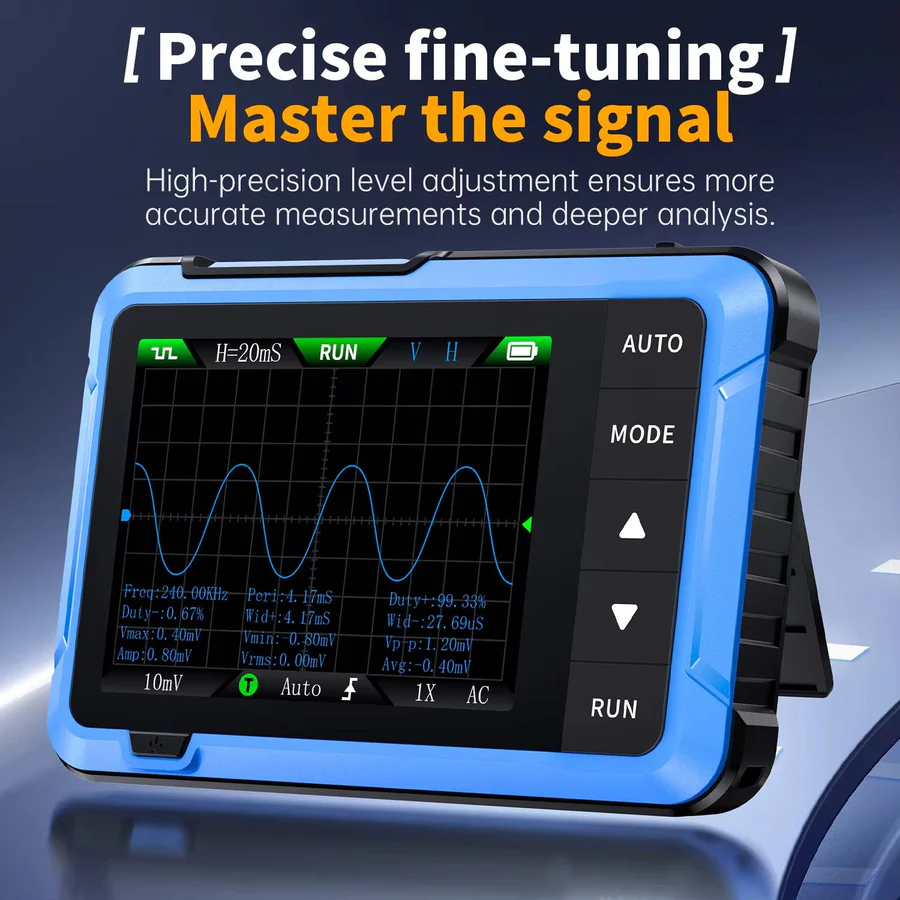

• Quick AUTO Mode: Instantly adjusts settings to display waveforms with a single click, saving you time and effort.
• Bright Display: 2.8-inch LCD with a 320×240 resolution for clear visibility, even in bright environments.

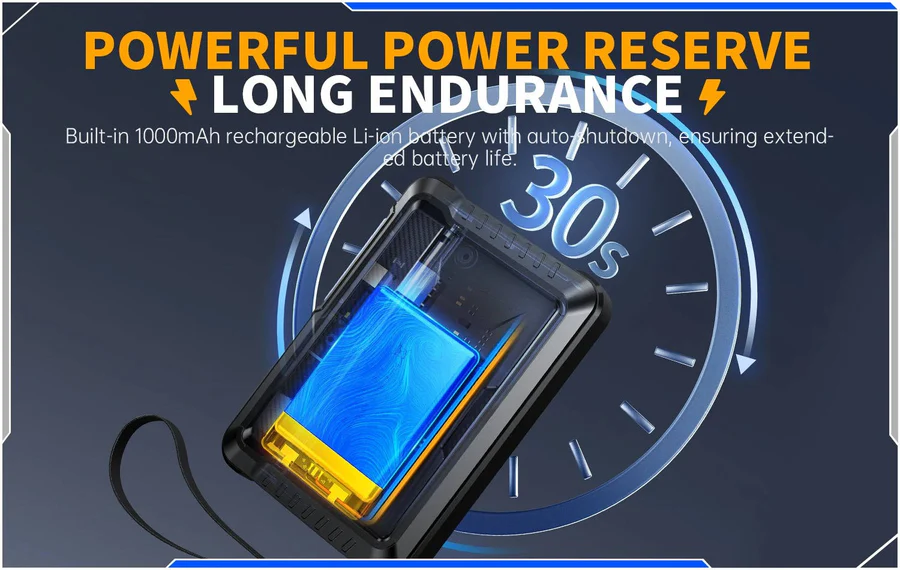

• Long Battery Life: 1000 mAh lithium-ion battery enables up to 4 hours of operation, so you can work without interruptions.
• Versatile Trigger Modes: Includes Single, Normal, and Auto options for diverse analysis, giving you the flexibility to tackle different types of signals.
• Integrated Signal Generator: Features 10 kHz (Standard) or 50 kHz (Pro), allowing you to generate signals for testing and analysis.

Product Details

• Display: 2.8-inch LCD
• Screen Resolution: 320×240
• Battery Capacity: 1000 mAh lithium
• Operating Duration: Up to 4 hours
• Voltage Measurement Range: ±400 V
• Sampling Rate: 5 MS/s (Standard), 48 MS/s (Pro)
• Bandwidth: 1 MHz (Standard), 10 MHz (Pro)
• Signal Generator Frequency: 10 kHz (Standard), 50 kHz (Pro)
• Weight: 0.5 lbs

Included Items

• 1 × Portable Digital Oscilloscope

Frequently Asked Questions

Q: What's the difference between the Standard and Pro models?
A: The Standard model provides 5 MS/s sampling with a bandwidth of 1 MHz, while the Pro model offers 48 MS/s sampling and 10 MHz bandwidth, making it perfect for more complex applications.

Q: How long does the battery last?
A: The integrated lithium battery can provide power for up to 4 hours of steady use, giving you plenty of time to complete your work.

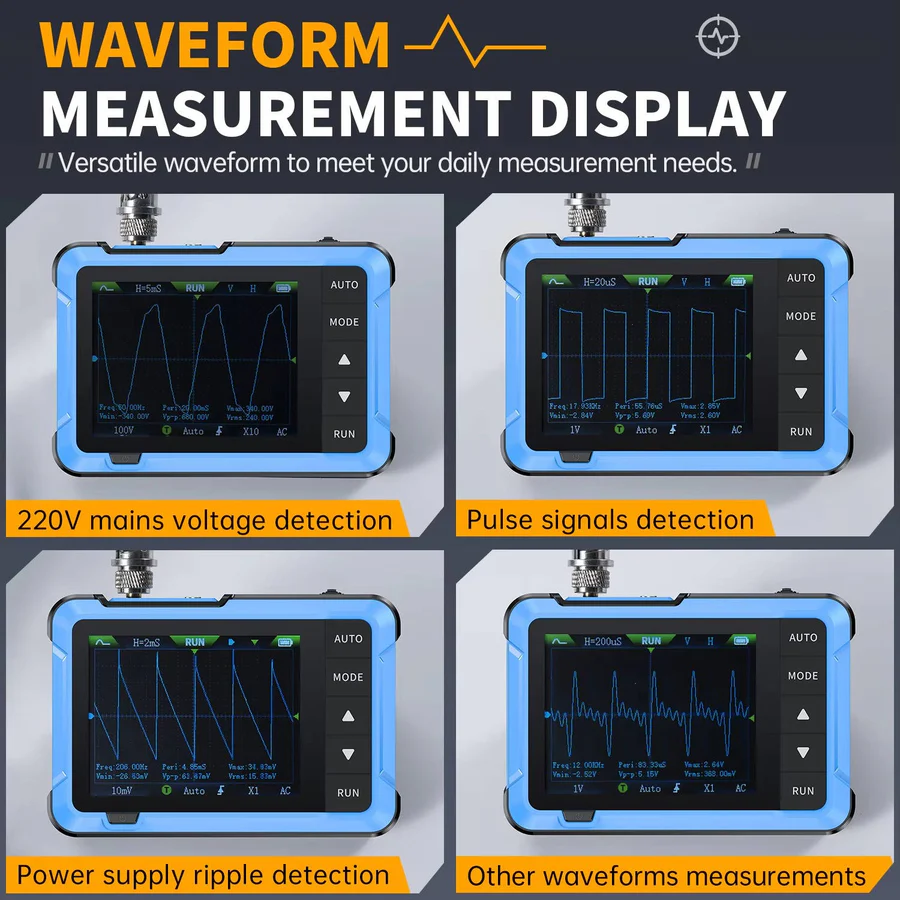

Q: Can it measure both analog and digital signals?
A: Yes, our oscilloscope can test both analog and digital signals, making it a versatile tool for a wide range of applications.

Q: Is it safe to use with high-voltage circuits?
A: Absolutely, our oscilloscope can measure voltage safely up to ±400 V, thanks to its built-in safety circuits, giving you peace of mind when working with high-voltage circuits.
